    Super EDM Hole Drilling Machine Fast Processing Speed And Low Consumption

    Ask Lasest Price
    Brand Name : MODIIS
    Model Number : MDS-340A
    Certification : ISO9001
    Supply Ability : 1000 Set/Sets per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    Super EDM Hole Drilling Machine Fast Processing Speed And Low Consumption

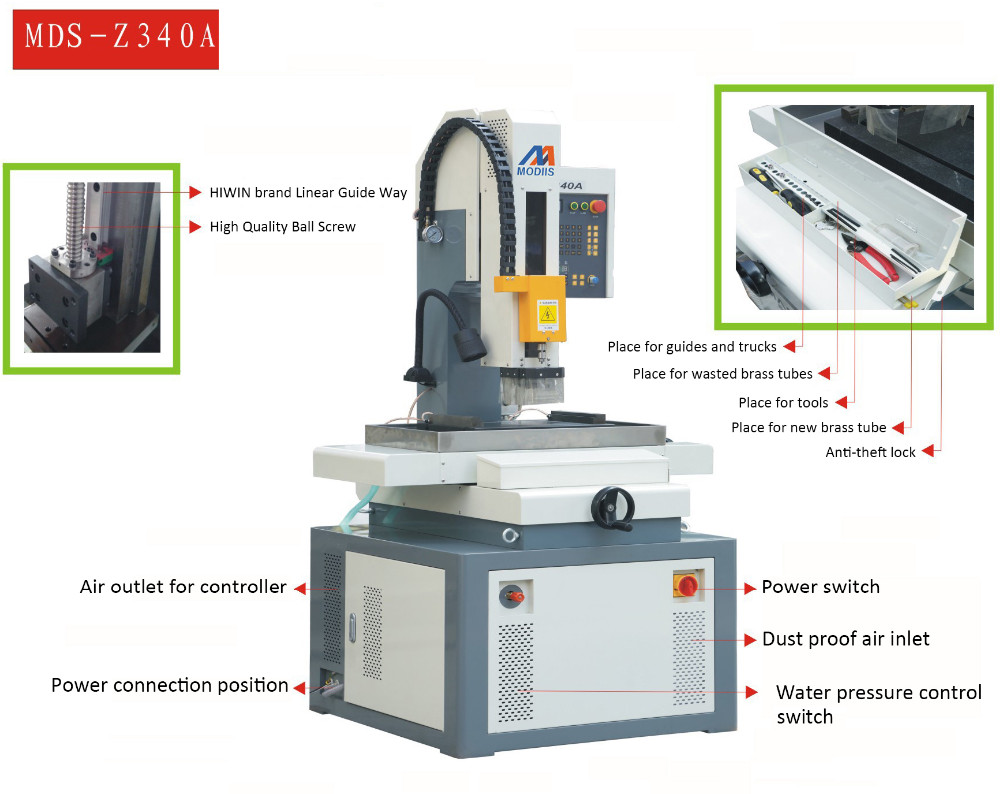

    Super drill edm MS-DZ340A


    1) Max Z axis travel is 380mm, can install max 500mm length brass tube.

    2) Z axis move up and down very quick, travel from bottom to topside only need 10 second.

    3) Max drilling speed is much faster.

    4) Adopt air pump, which is better than BZ-103T and BZ-103A.

    5) Brass tube consume is only 1/3 of normal brand machine.

    6) Max distance between guide and work table is 320mm.

    7) When you get the machine, you will find the design is better, cover and electric parts are stronger .


    Product Application

    The machine tools are applicable to the threading holes for wire cutting, injection holes for oil pump, spinning holes for chemical fiber spinning plates, oil-way holes for hydraulic-pneumatic equipments, group holes for filter plates and since plates, cooling holes for motors and deep pinholes difficult process in traditional methods.


    Feature:
    1. Fast processing speed and low consumption
    2. Install numerical display device
    3. Ultra thickness: main axis travel 380, applying to thick part processing.
    4. Ultra travel: servo travel 380, lengthened electronic pole is available and 15% of pole saving
    5. Z-axis with high efficiency and good stability.
    6. X and Y axis uses ball bearing lead screw easy to ensure feeding precision.
    7. The angle of main axis is adjustable for angling hole processing.
    8. Electronic fluctuating and easy operation.



    Electrode diameter

    0.2---3.0mm

    Max Drilling Speed

    100mm/min

    Z1 axis travel

    250mm

    Z2 axis travel(Servo Motor Travel)

    370mm

    Rotation speed of rotary head

    20~120rpm

    Working table size

    400×700mm

    Working table travel

    400×300 mm

    Max. distance between guide and working table

    320mm

    Height of working table above the ground

    900mm

    Max. processing current

    30A

    Max. power consumption

    3.0 KVA

    Power supply

    380V/50HZ

    Filter Type

    Shallow Seam Type

    Max working solution pressure

    8 ( Mpa )

    Max table load

    250 kg

    Method of working fluid filter

    Thread gap

    Controller type

    Automatic Z axis

    Capacity of working fluid tank

    30L

    Machine size

    1000×1000×2000 mm

    Digital Display

    DRO for X,Y,Z-axis

    Machine weight

    700kg
