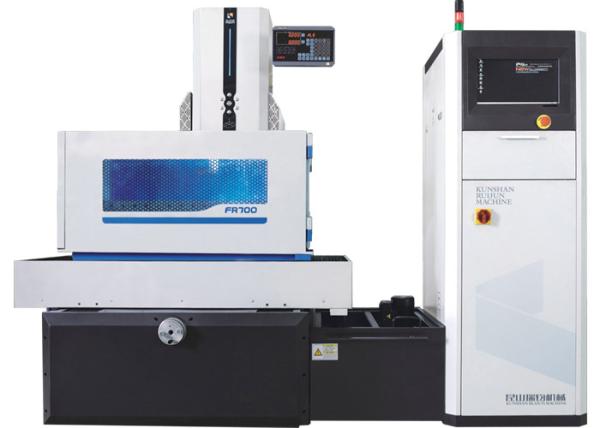

High Efficiency Electric Wire Cutting Machine FR400M FR500M FR600M
FR700M
| Machine Body | FR-400/M | FR-500/M | FR-600/M | FR-700/M |
| Table travel (X*Y*Z)(mm) | 300*400*250 | 350*500*250 | 400*600*300 | 450*700*300 |
| Table si£e (W*L*)(mm) | 550*680 | 530*770 | 680*940 | 720*1040 |
| Max work-piece weight | 350kg | 400kg | 500kg | 600kg |
| Max cuttirig taper/angle | ±12°/80mm |
| Wire diameter | 0.16-0.20mm |
| Precision(3 times cutting) | ±0.005mm |
| Repetitive positioning precision | ±0.003mm |
| Surface finishing | Ra≤0.8um |
| Power capacity | 3 KVA |
| Machine weight | ≈1500kg | ≈1700kg | ≈2000kg | ≈2300Kg |
| Water lark size(W*L*H)(mm) | 580*960*660 |
| Water lank capacity | ≈200L |
| Filtration type | Double pump fiilit ation |
| Working solution | Work solution+Pure water |
1. The handheld unit developed independently is convenient for
customer to use (only servo type)
2. High-efficiency and low-loss environmental control
system,greatly improve the efficiency, reduce power dissipation.
3.Table Moving Part: X/Y axis adopts three-tier worktable struction
guarantees the high cutting accuracy and make sure the table moving
smoothly.
4. Multifunction work-piece fixture.
5. Z axis electric lifting.
6. X,Y axis digital read out(DRO)
7. Multiple filtration water tank.
8. Excellent Software with both design and operating
function,multi-cutting makes the surface finishing close to brass
wed m. Controller can accept & transfer different drawing format,
easy to operate, greatly improve the work efficiency.
9. Intelligent database : Not necessary to input the cutting
parameters manually, control system works out perfect parameters
immediately after inputting job thickness, wire diameter and
cutting times.The problem of different job accuracy caused by
workers with different experiences wit! be solved.
10. X/Y axis drived by AC servo motors,after correcting by laser
interferometer,improve the displacement accuracy and speed, (only
servo type)
11. Wire Tension System : Adopts double direction wire tension
system, keep the wire tension with same strength during the working
time, which can protect the wire and reduce the wire broken
possibility.
Wire Swing system:The first company in Chinese market that adopts
linear guide way,make the swing drum
12. Moves smoothly without any unnecessary abrasion, a void many
problems such as big abrasion, wire breaking,wire loosing etc
caused by V-shape guide way.
13. Central lubrication system for the whole machine.
14. Taper/angle part:Well-designed high strenth taper
device,ensures the displacement accuracy for moving and taper
cutting
